GIGABYTE H510M K Intel Micro ATX Motherboard

-7 %

GIGABYTE H510M K Intel Micro ATX Motherboard

Stock: In Stock
Model: H510M K

Based on 0 reviews. - Write a review

9,800৳

10,500৳

Ex Tax: 9,800৳

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Key Features

Model: H510M K
Supported CPU: 11th Gen Intel Core Processors (LGA1200)
Supported RAM: DDR4, 2 DIMMs, up to 64 GB
Graphics Output: 1 x HDMI
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)

View more details

Specification

Basic Info
Chipset	Intel B560 Express Chipset
Supported CPU	11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot: Supporting PCIe 4.0 and running at x16 (PCIe 4.0 is only supported by 11th-generation processors.) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Maximum Memory	64GB (32 GB single DIMM capacity)
Slots	2 x DIMM
Supported Memory	1th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium®/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Type	DDR4
Graphics Info:
Graphics	Integrated Graphics Processor-Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI	1 x HDMI port

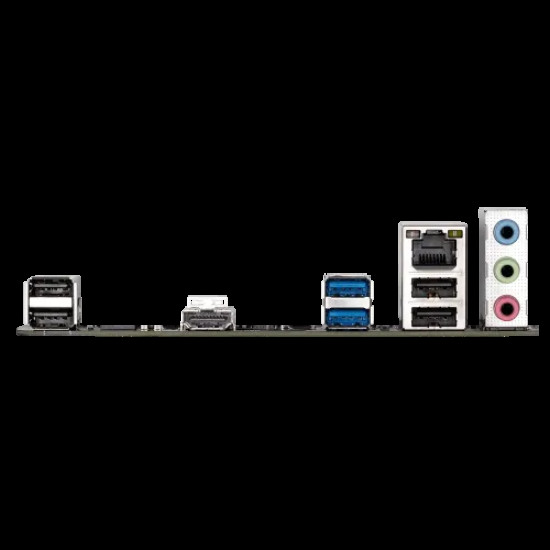

Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	Chipset: 1 x M.2 connector: Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Warranty Information
Warranty	03 Years Warranty

Description

GIGABYTE H510M K Intel Micro ATX Motherboard

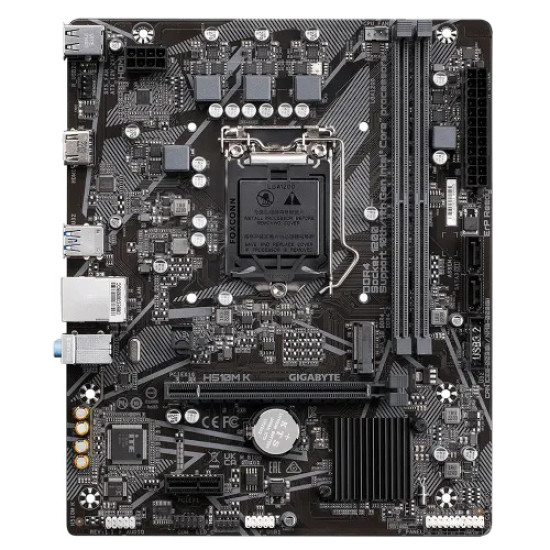

The GIGABYTE H510M K Intel Micro ATX Motherboard is a reliable and efficient choice for building a compact and versatile desktop system. Designed to support 11th and 10th Gen Intel Core Processors with an LGA1200 socket, this motherboard offers compatibility with a wide range of CPUs. It supports DDR4 memory with two DIMM slots, allowing for a maximum capacity of up to 64 GB. For graphics output, it features an HDMI port, providing a convenient connection for displays. Equipped with a Realtek GbE LAN chip, the GIGABYTE H510M K offers network speeds of up to 1 Gbps, ensuring fast and stable internet connectivity. The motherboard also delivers high-quality audio through its 8-channel HD Audio with high-quality capacitors, making it suitable for immersive sound experiences. It includes an NVMe PCIe Gen3 x4 2280 M.2 connector, allowing for high-speed storage solutions. The Smart Fan 5 technology with multiple temperature sensors and hybrid fan headers, including a FAN STOP feature, ensures efficient cooling and quiet operation. The GIGABYTE APP Center provides an easy-to-use interface for managing various system utilities, enhancing the user experience. Additionally, the anti-sulfur resistor design helps protect against sulfur corrosion, ensuring durability and longevity. Overall, the GIGABYTE H510M K is a solid foundation for a variety of builds, catering to gaming, productivity, and general use.

Buy GIGABYTE H510M K Intel Micro ATX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get the original GIGABYTE H510M K Intel Micro ATX Motherboard From ONE IT. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest ONE IT Shop to get yours at the lowest price. The GIGABYTE H510M K Intel Micro ATX Motherboard comes with 3 years warranty.
